Homogeneous and Projective Geometry
Points, lines, and planes in homogeneous coordinates, with incidence, duality, and points at infinity.
Key Terms
Python Tools
Textbook Reference
Topics Covered
- 1Homogeneous representation of points, lines, and planes
- 2Incidence, join, and intersection via dot and cross products
- 3Duality of points and lines in the projective plane
- 4Points and lines at infinity and the line at infinity
- 5Projective transformations acting on points and on lines
Learning Outcomes
- Convert between Euclidean and homogeneous representations
- Compute intersections and joins using cross products
- Explain points at infinity and how projective transformations move them
Lecture Infographics

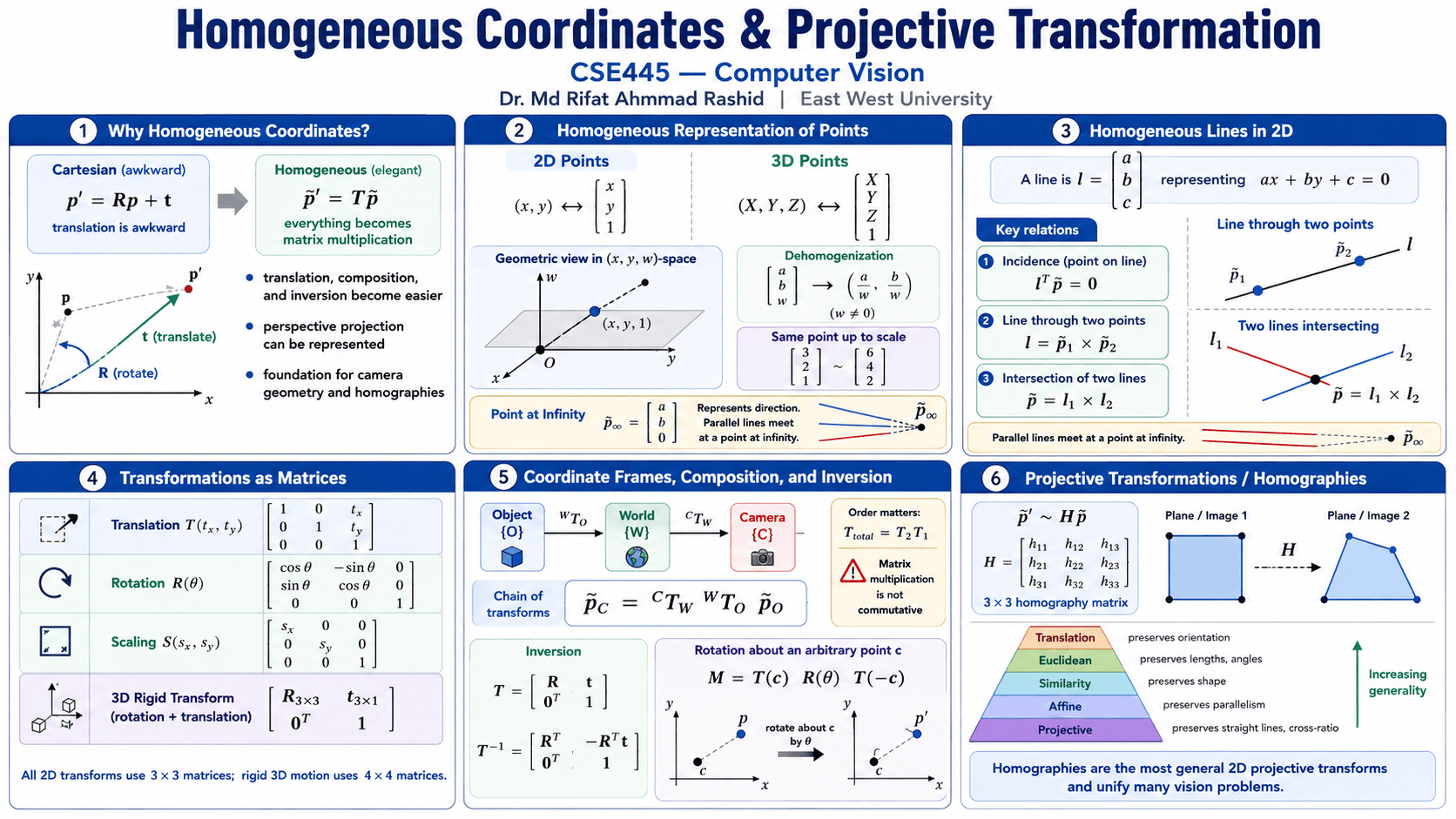

1 image file
Lecture Infographics
Composite 3D Transformation Demo
Triangle vertices are transformed around an arbitrary pivot P: translate to origin, rotate and scale, then translate back.
Current stage
1. Translate pivot P to origin
Subtract P from each vertex so rotation and scale happen around the pivot, not the world origin.
Live parameters
(1.20, 0.80, 0.50)
0.00 deg
(1.00, 1.00, 1.00)
Process
Move pivot to origin
q = v - P
Apply local transform
r = S R q
Move back to world frame
v' = r + P
| Point | v - P | x' | y' | z' |
|---|---|---|---|---|
| A | (-0.85, -0.60, -0.25) | 0.35 | 0.20 | 0.25 |
| B | (0.95, -0.55, 0.10) | 2.15 | 0.25 | 0.60 |
| C | (-0.15, 1.10, -0.05) | 1.05 | 1.90 | 0.45 |
v' = T(P) S R T(-P) v, where v = (x, y, z, 1). Homogeneous coordinates let translation, rotation, and scale live inside one 4 x 4 matrix chain.
Lecture PDFs
Homogeneous and Projective Geometry
The embedded PDF preview is disabled to reduce Vercel bandwidth usage. Open the lecture file directly in Google Drive for viewing, downloading, or presenting.
