Corners and the Structure Tensor
From a windowed SSD to the second-moment matrix, its eigenvalues, and the Harris and Shi-Tomasi responses.
Key Terms
Windowed SSDTaylor ExpansionStructure TensorEigenvaluesHarris ResponseShi-Tomasi
Python Tools
OpenCVNumPyMatplotlib
Textbook Reference
Szeliski Ch.7
Topics Covered
- 1Windowed sum-of-squared-differences under a small image shift
- 2First-order Taylor expansion of the shifted patch
- 3The second-moment matrix M and its accumulation over a window
- 4Eigenvalue analysis: flat, edge, and corner regimes
- 5Harris response, Shi-Tomasi minimum-eigenvalue criterion, thresholding, and non-maximum suppression
Learning Outcomes
- Derive the structure tensor from a Taylor expansion of the windowed SSD
- Classify local image structure from the eigenvalues of M
- Compare the Harris and Shi-Tomasi corner criteria and their parameters

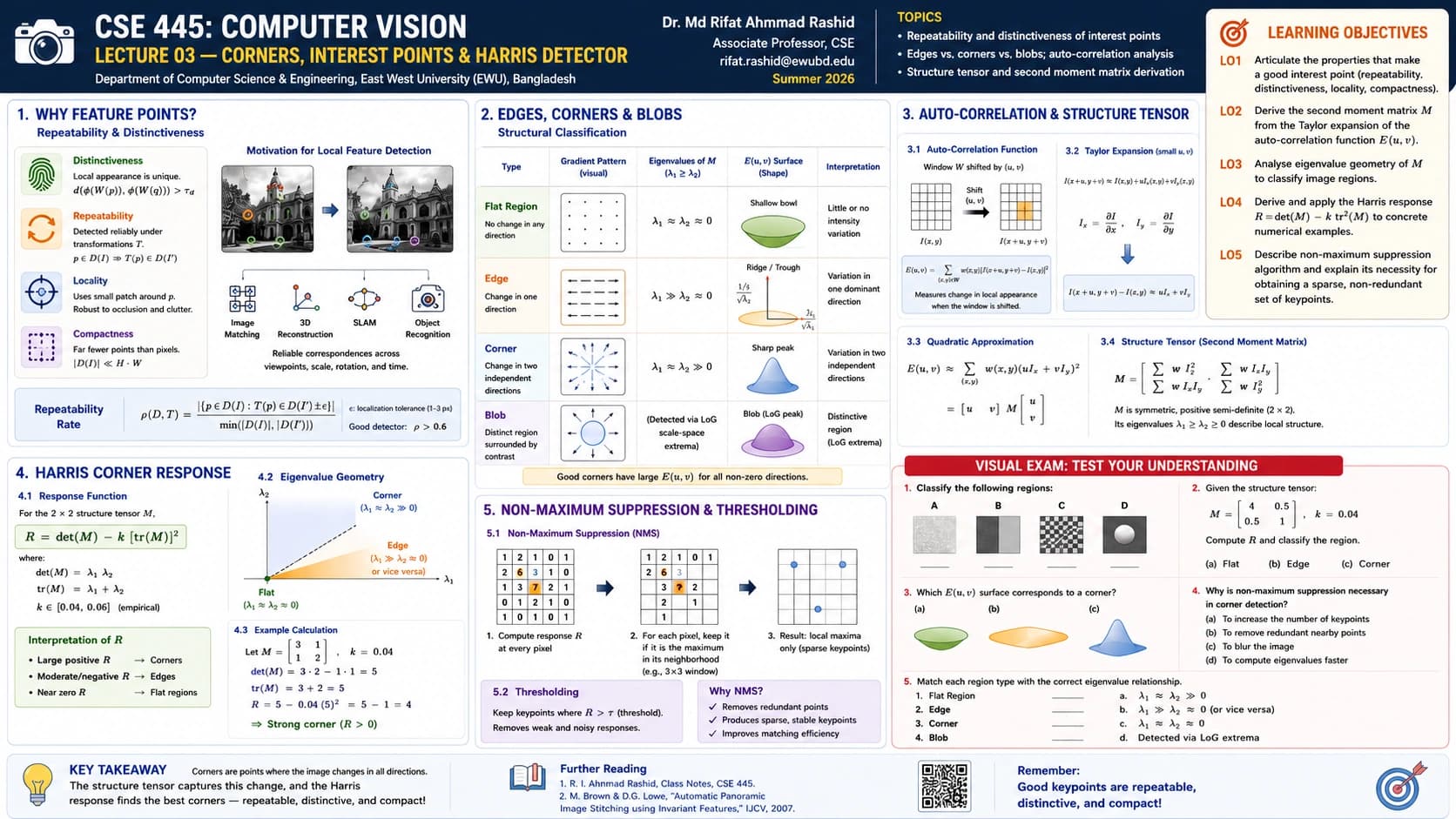

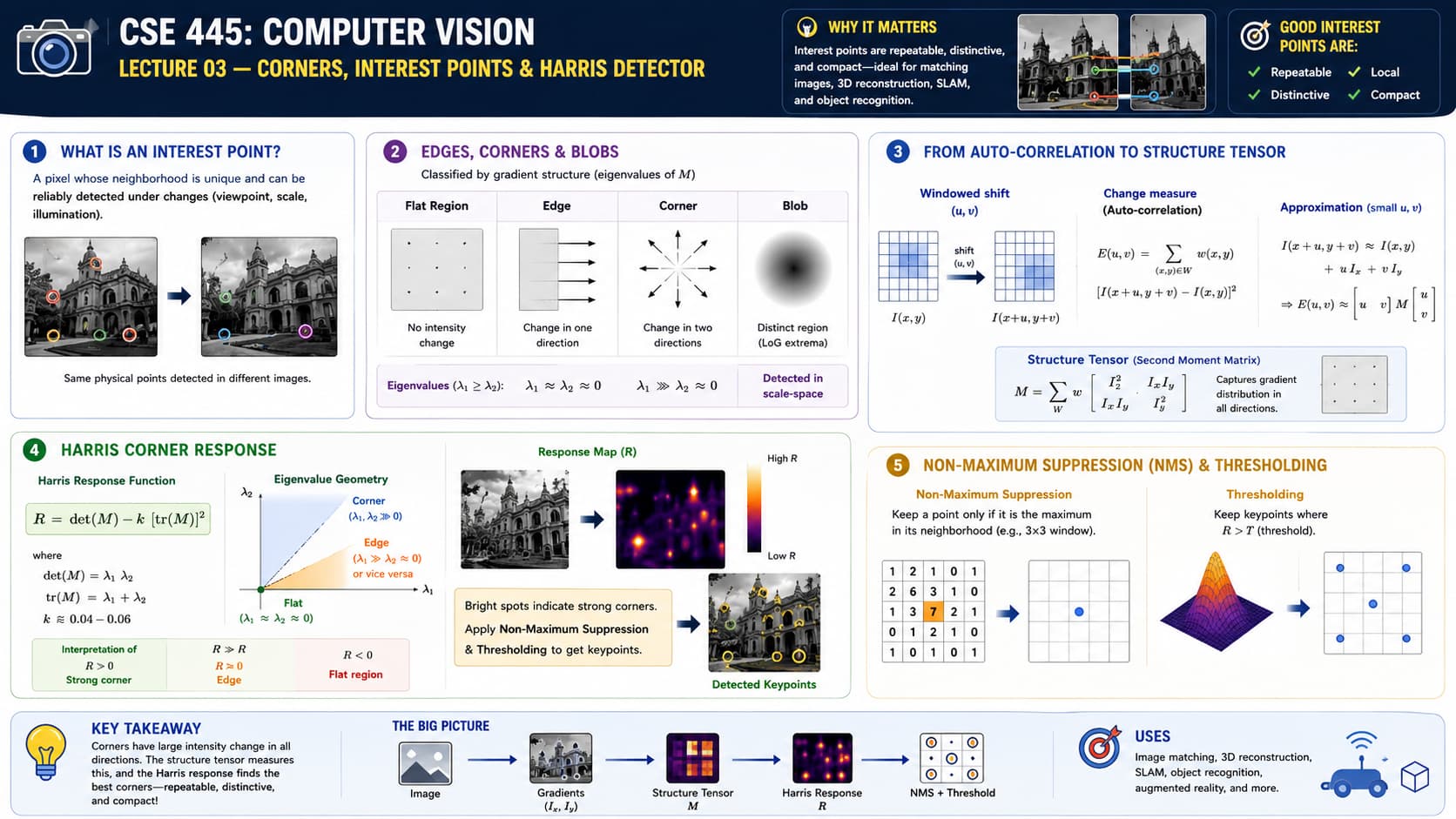

Lecture Infographics
